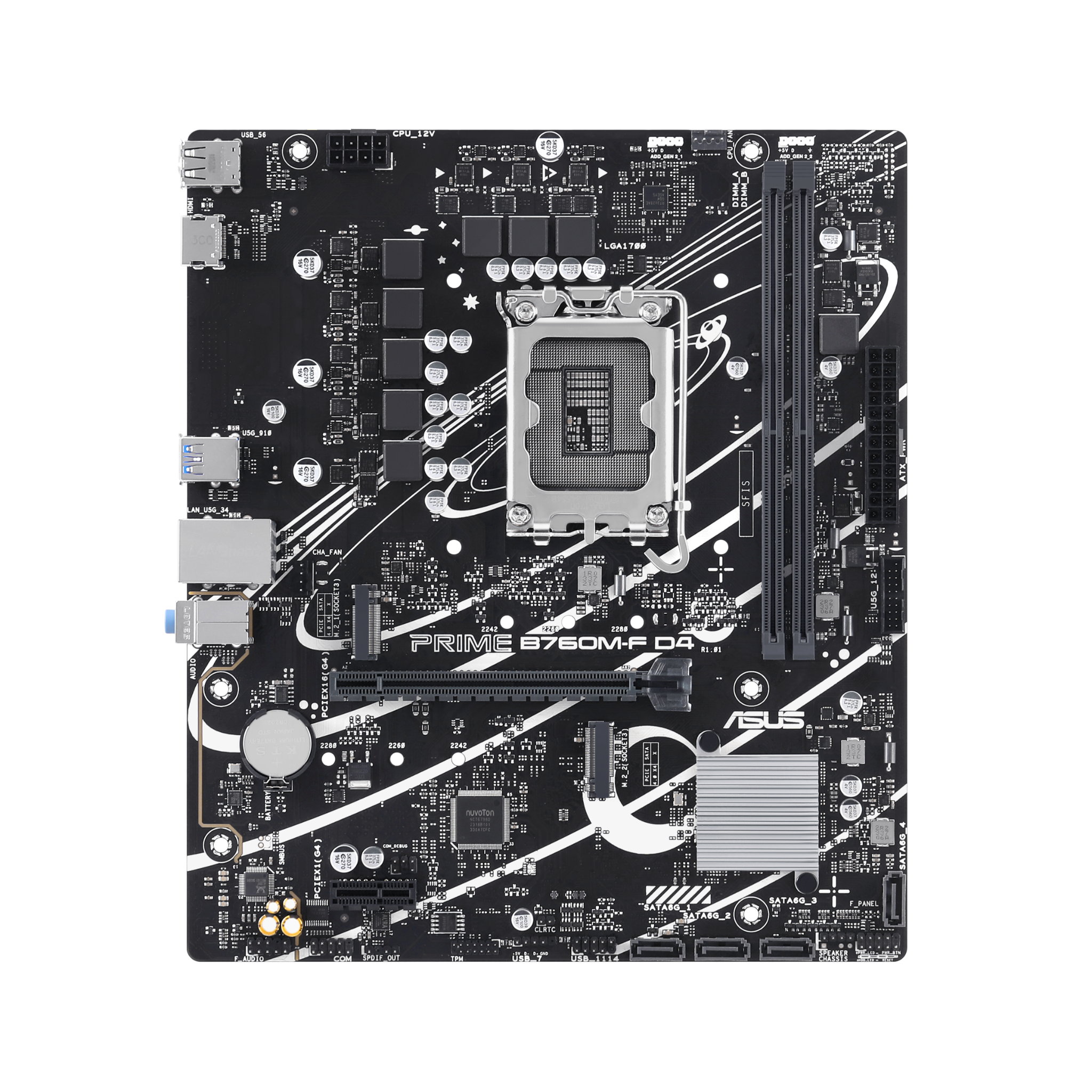

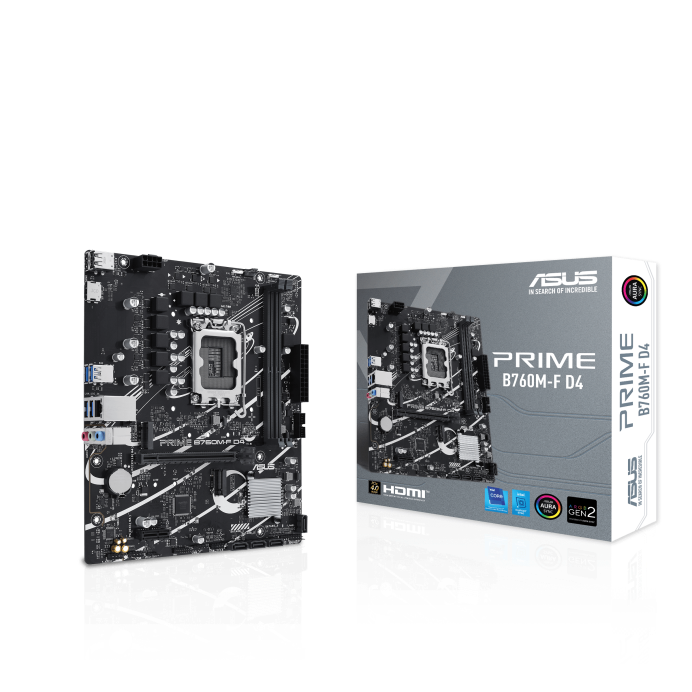

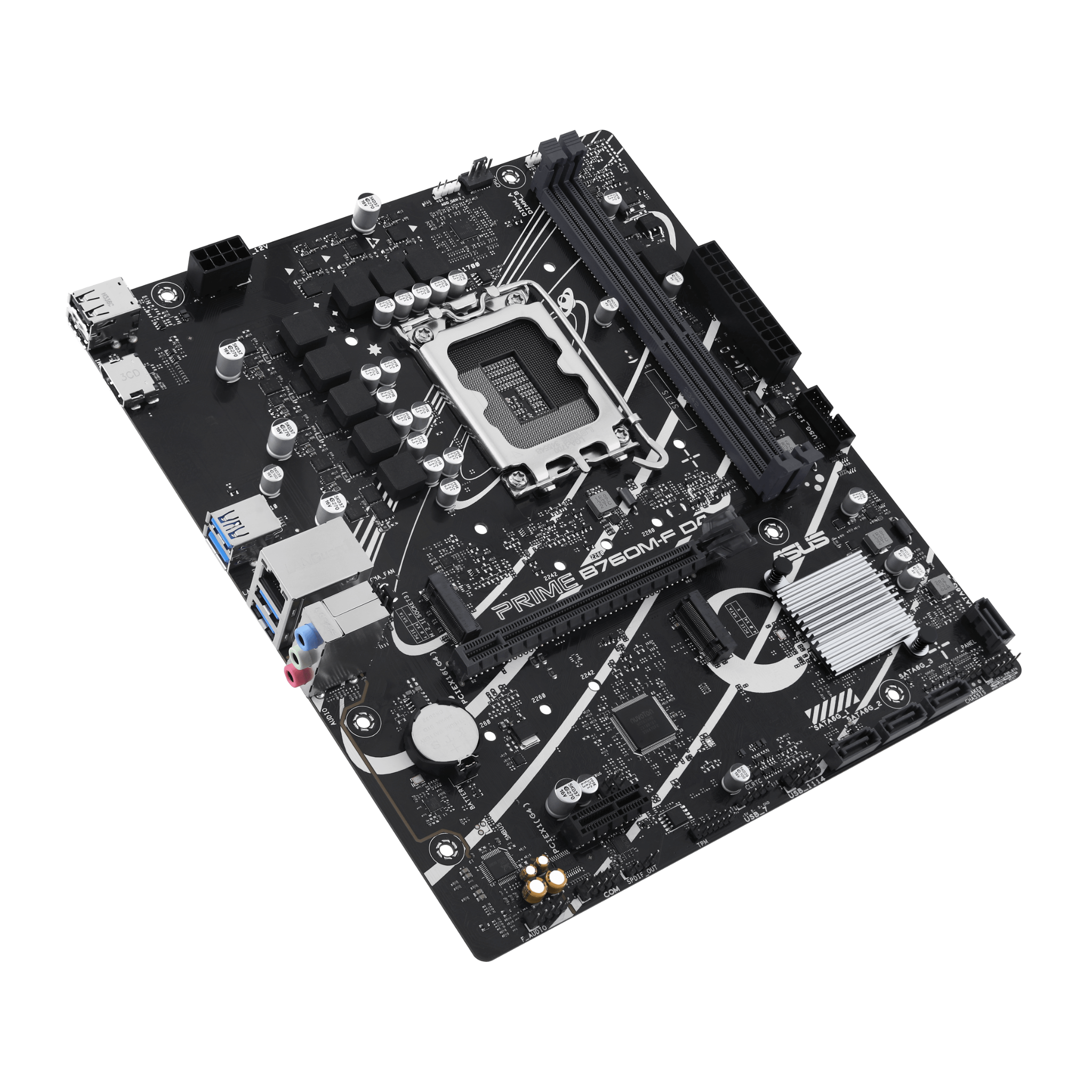

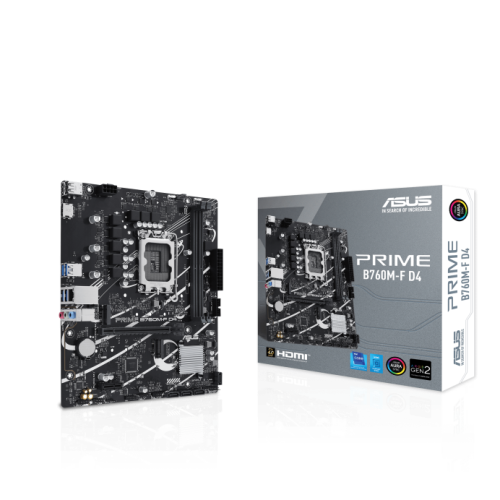

Mainboard ASUS PRIME B760M-F

MÔ TẢ SẢN PHẨM

Hãng sản xuất: ASUS
Chipset: Intel® B760 Chipset
Socket: LGA 1700 (Intel® Core™14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors)
RAM: DDR4 – 2 x DIMM slots, Max. 64GB
Hỗ trợ tối đa RAM: 64 GB
Khe cắm PCI-E: 1 x PCIe 4.0 x16 slot, 1 x PCIe 4.0 x1 slot
Kết nối: 1 x Realtek 1Gb Ethernet
Khe cắm M.2: 2
Âm thanh: Realtek 7.1 Surround Sound High Definition Audio CODEC

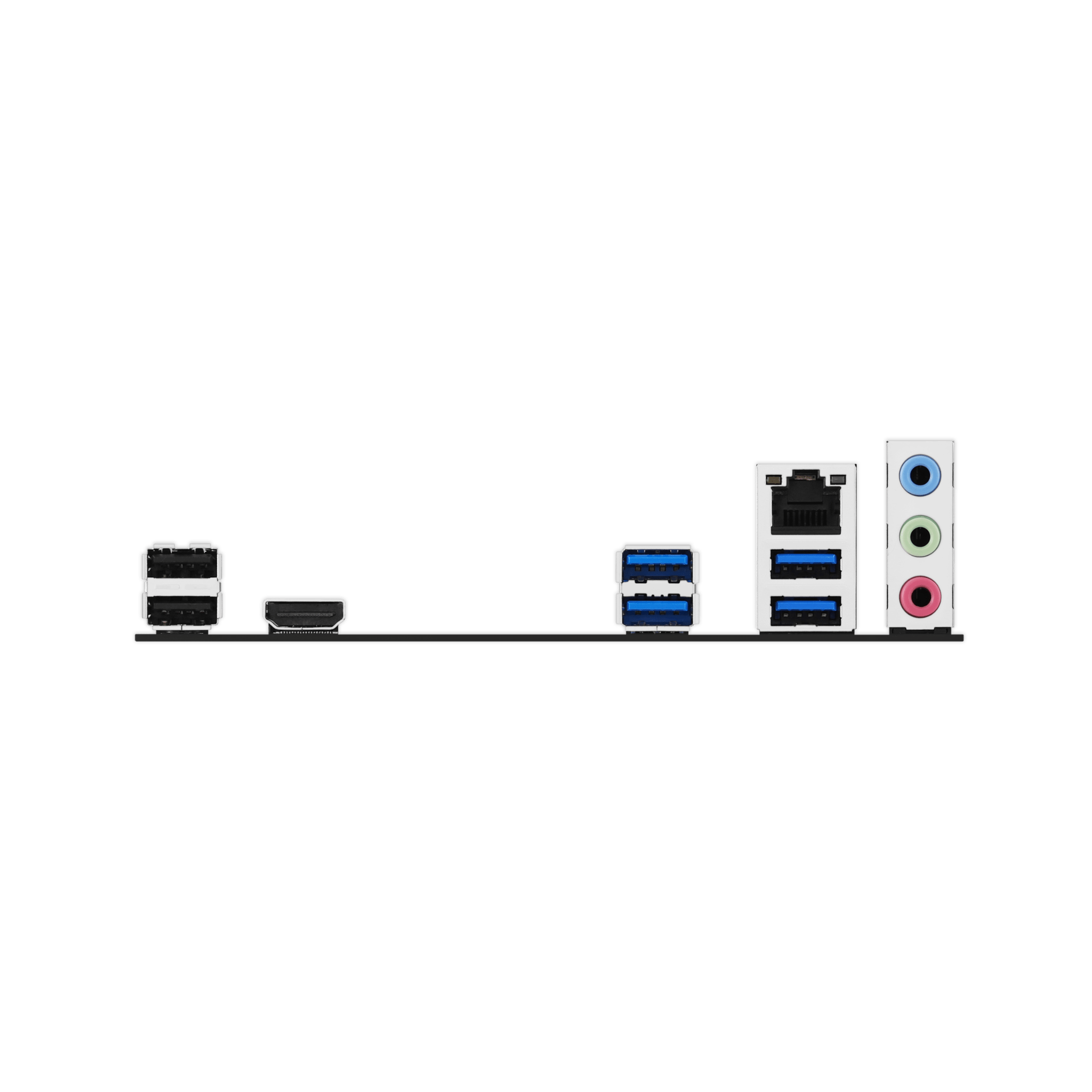

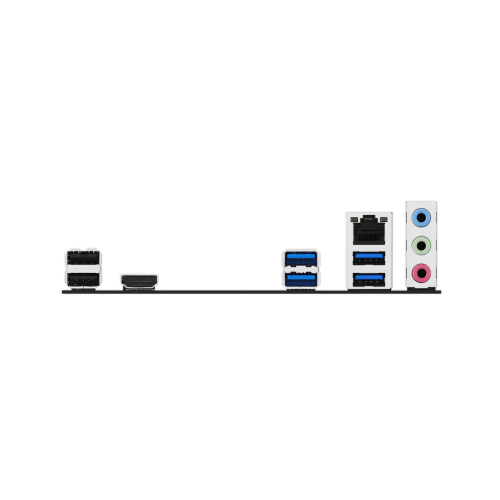

Cổng I/O sau:
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks

Cổng  I/O nội bộ:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

USB:
Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)*
Front USB (Total 5 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports

Kích thước:
micro-ATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Tính năng khác
ASUS 5X PROTECTION III
ASUS Q-DESIGN
ASUS Thermal Solution
ASUS EZ DIY
AURA SYNC

Tương thích: Windows® 11, Windows® 10 64-bit
