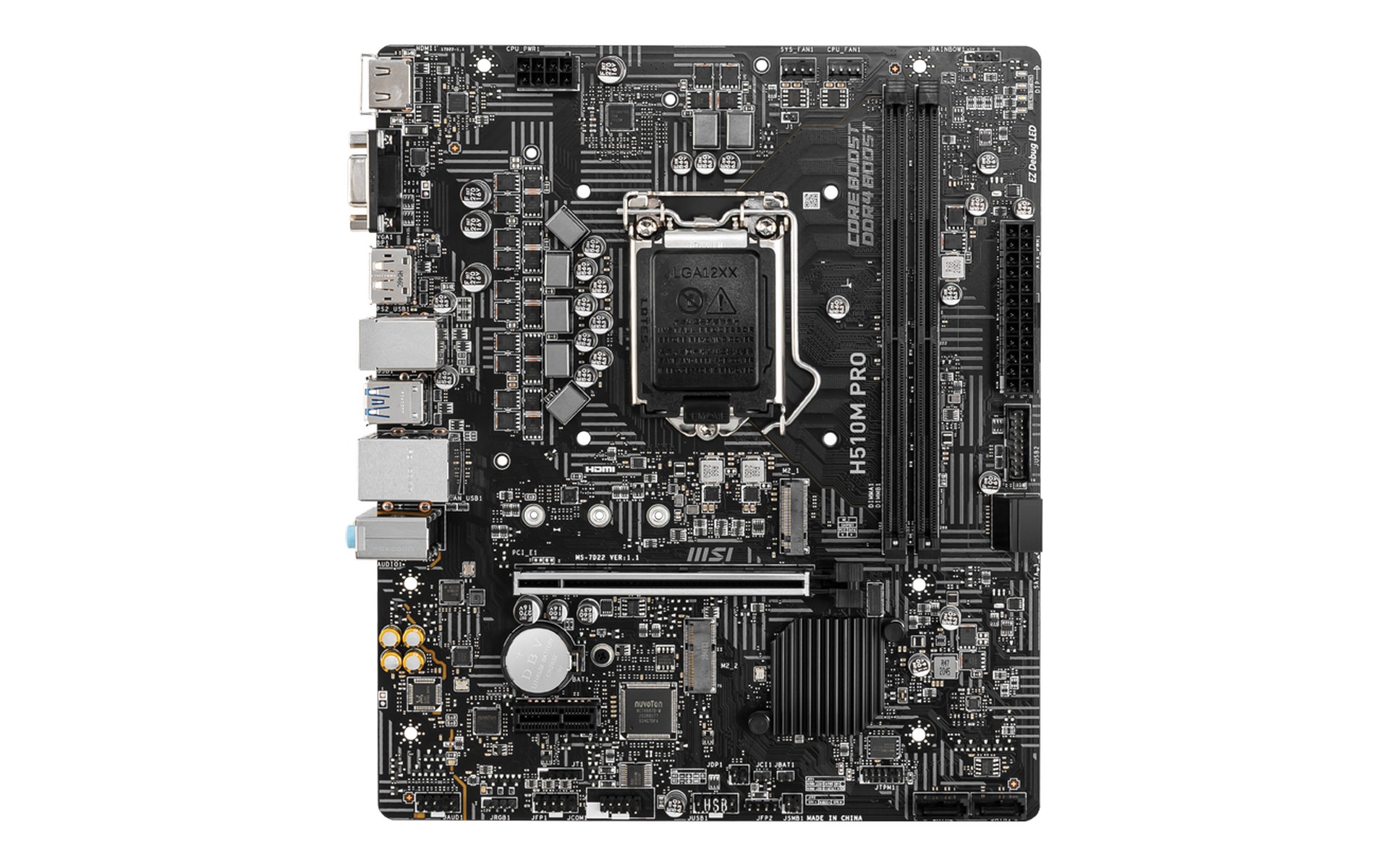

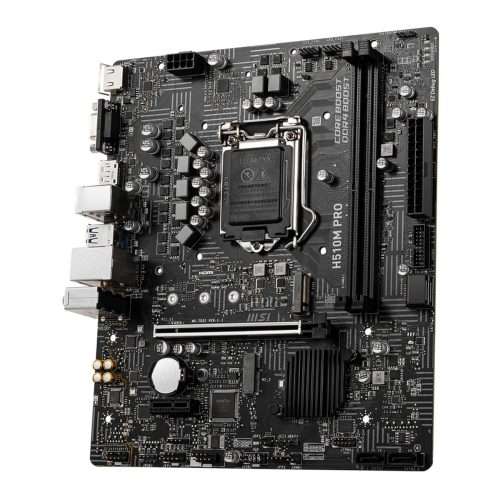

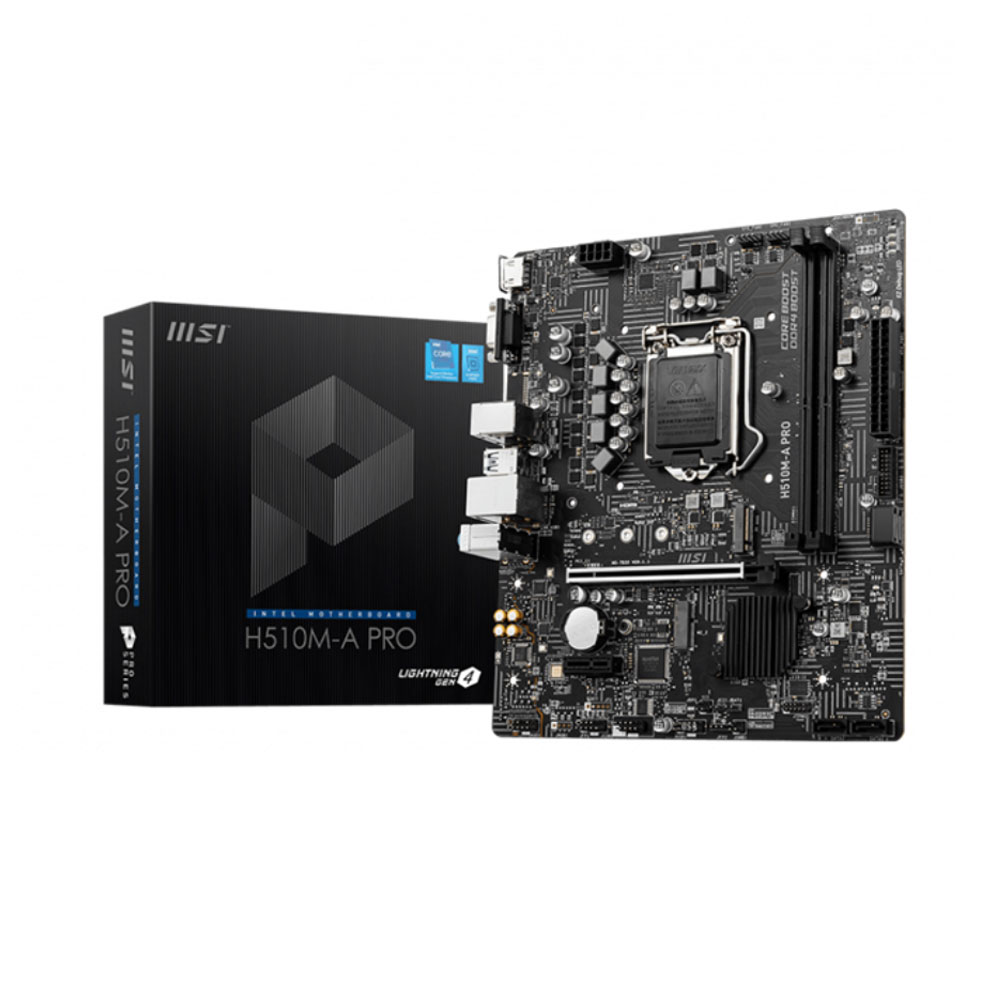

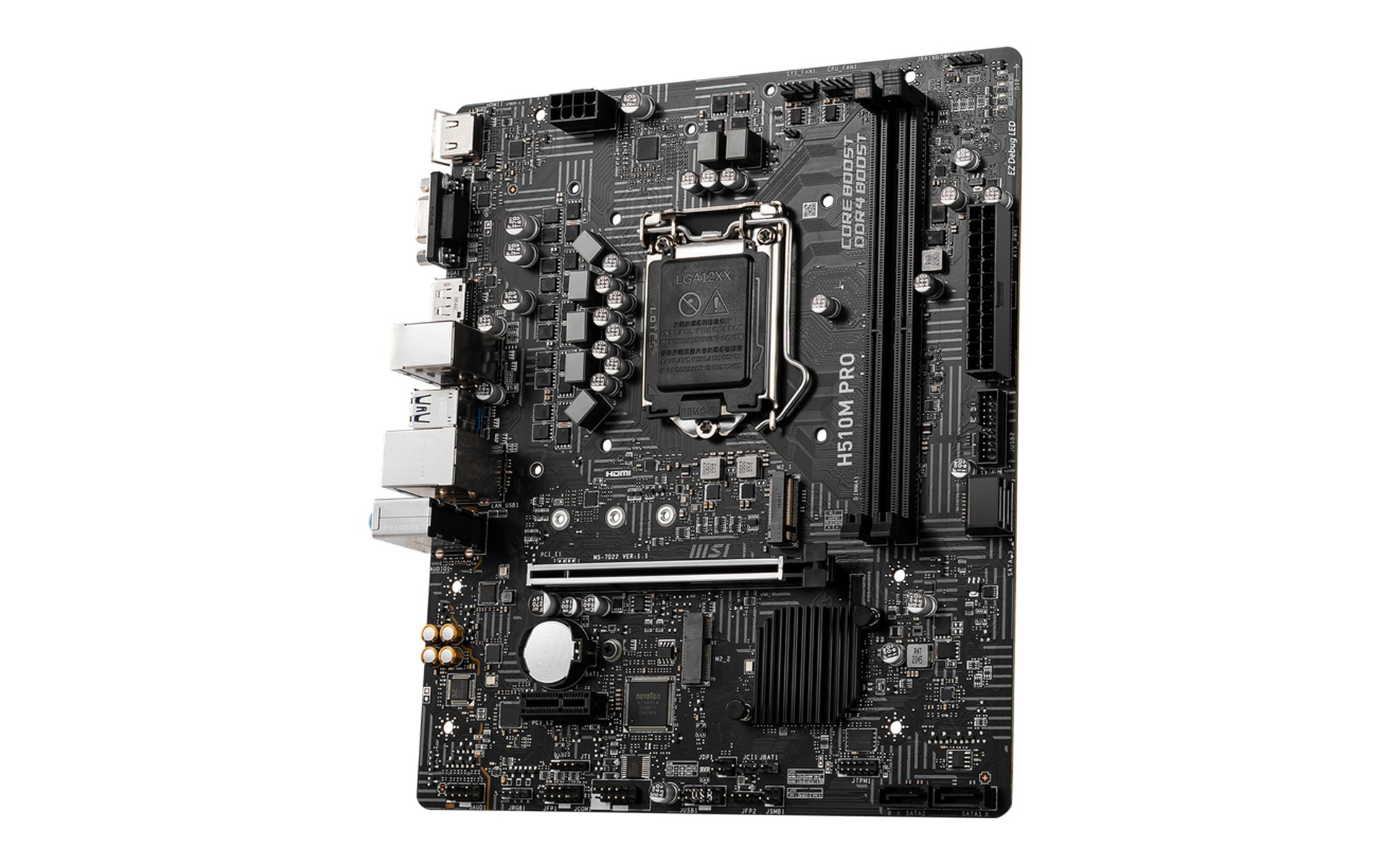

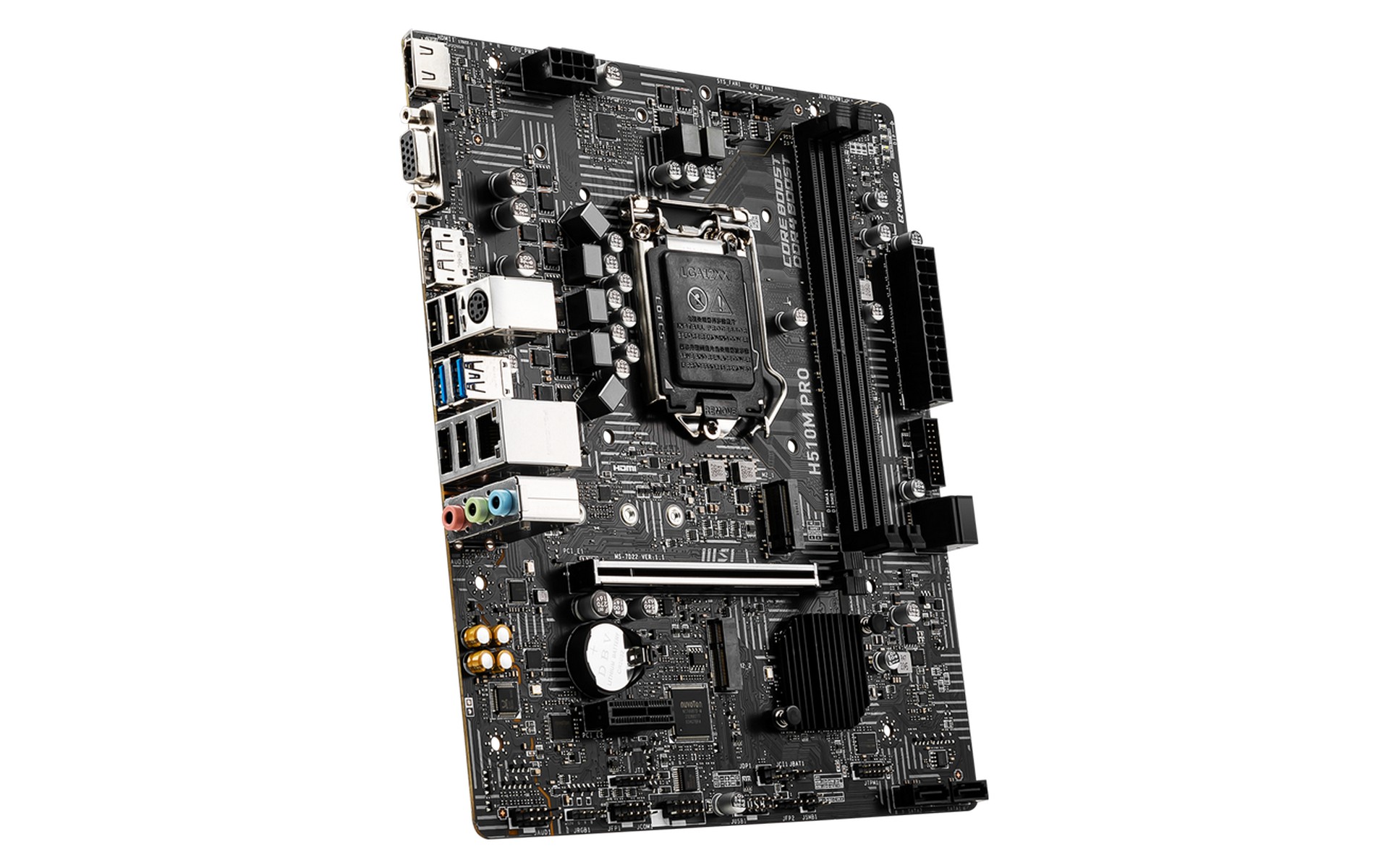

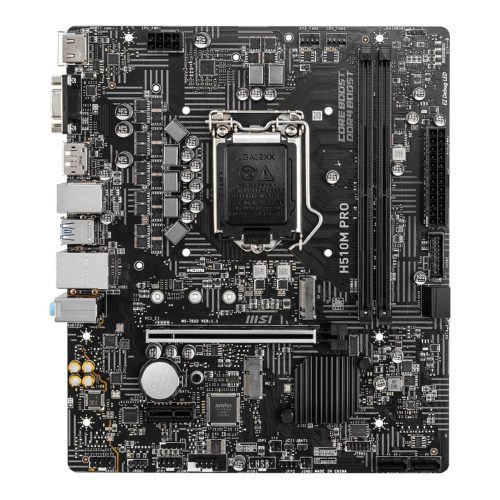

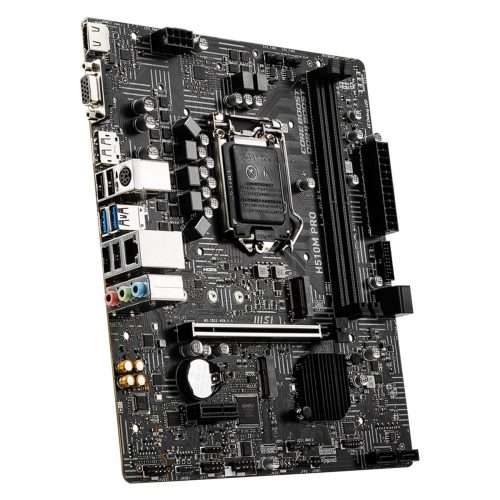

MAINBOARD H510 MSI PRO M-A

Supports 10th Gen Intel^® Core™ Processors, 11th Gen Intel^® Core™ Processors, Pentium^® Gold and Celeron^® Processors

Processor socket LGA1200

• 2x DDR4 memory slots, support up to 64GB
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)

• 1x PCIe x16 slot (From CPU)
  • Support up to PCIe 4.0 for 11th Gen Intel® CPU
  • Support up to PCIe 3.0 for 10th Gen Intel® CPU
• 1x PCIe 3.0 x1 slot (From PCH)
• 1x M.2 slot with E key for WiFi module only(M2_2)

• 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
• 1x VGA port, supports a maximum resolution of 2048×1536 60Hz, 1920×1200 60Hz^[1]

• 4x SATA 6Gb/s ports (From H510 Chipset)
• 1x M.2 slot (Key M)
  • M2_1 slot (From H510 Chipset)^[1]
    • Supports up to PCIe 3.0 x4
    • Supports 2242/ 2260/ 2280 storage devices

• 7.1-Channel High Definition Audio

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector

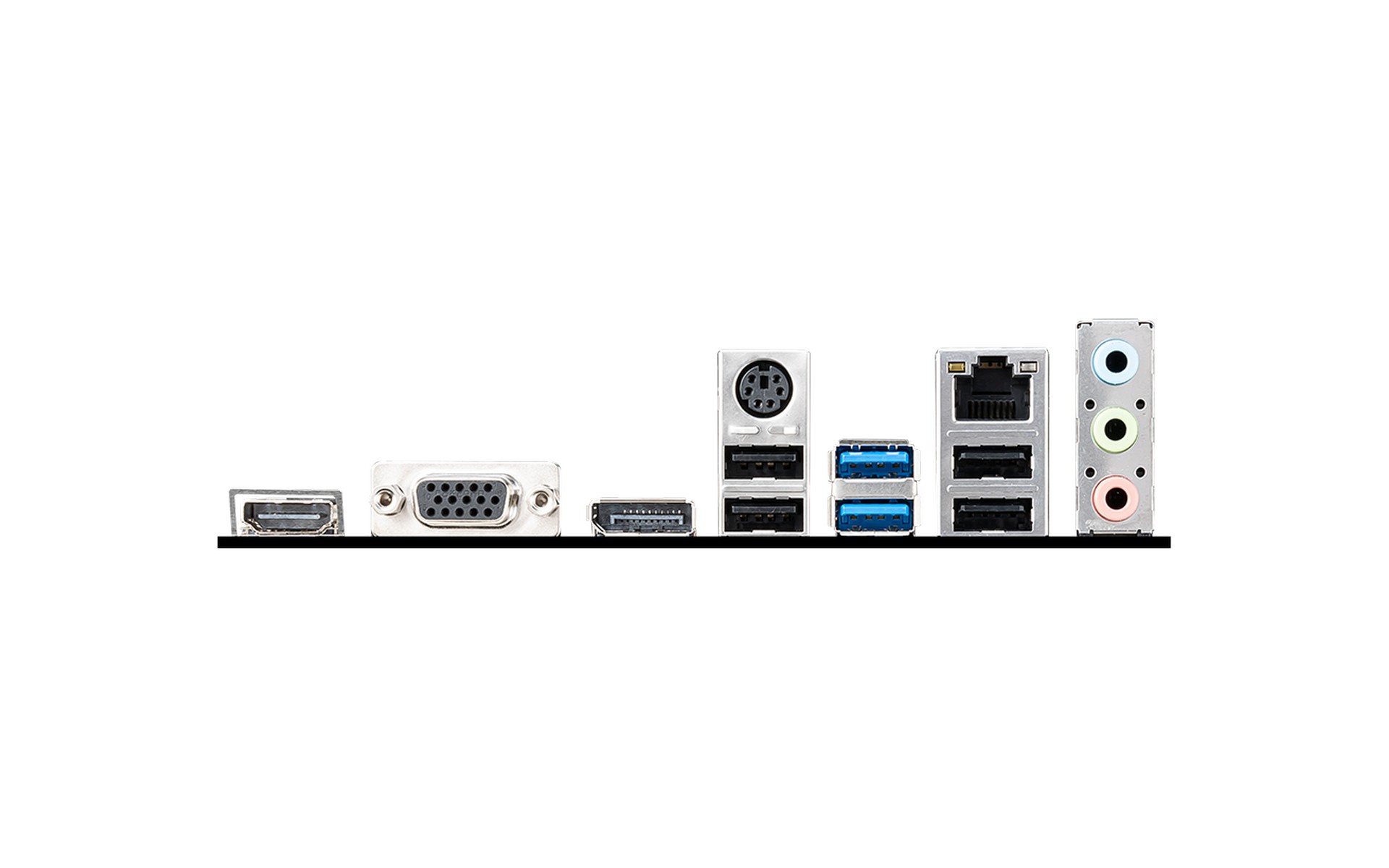

• HDMI
• VGA
• Mouse / Keyboard
• LAN port
• Audio connector
• USB 2.0
• USB 3.2 Gen 1 5Gbps Type-A
• USB 2.0

• mATX Form Factor
• 9.29 x 7.95 in. (23.6 cm x 20.2 cm)

Hỗ trợ cho Windows® 10 64-bit
